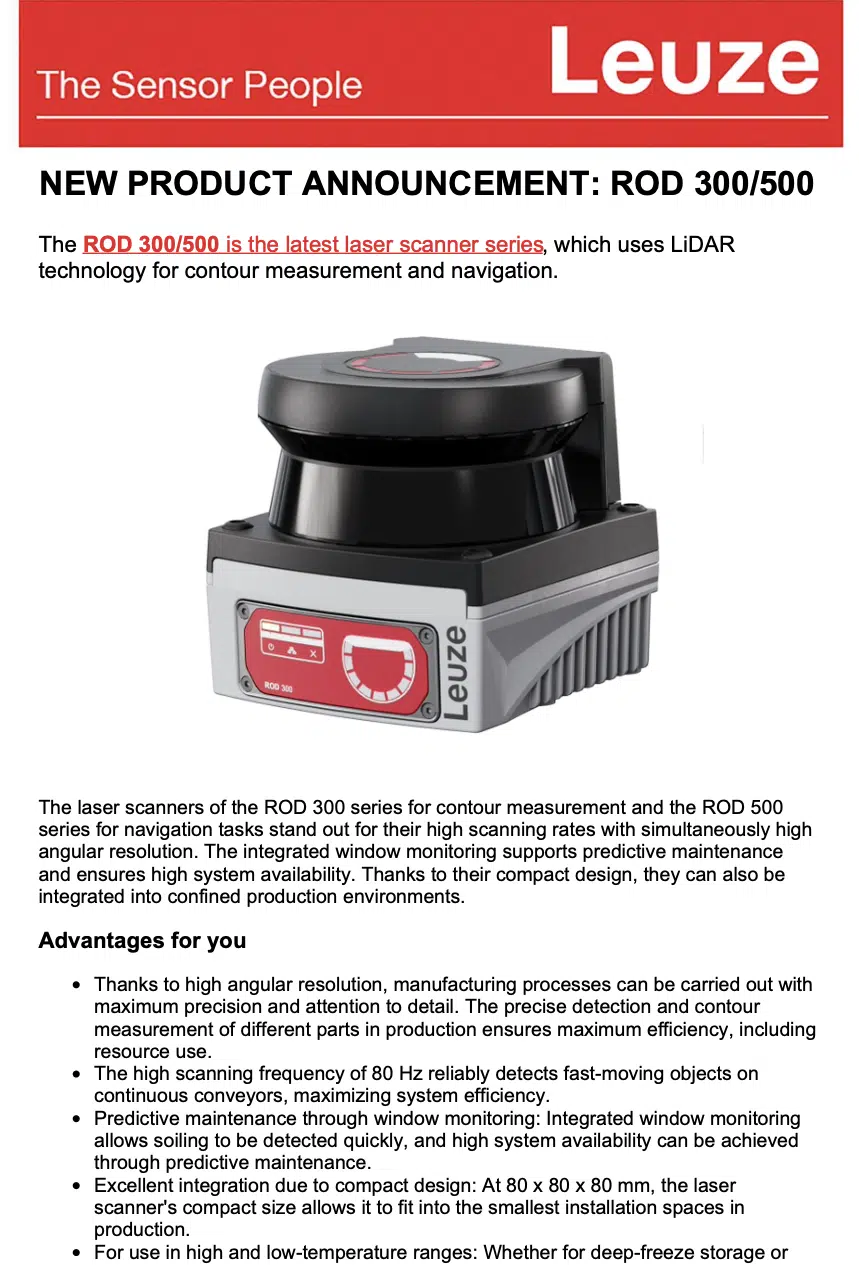

NEW PRODUCT ANNOUNCEMENT: ROD 300/500

The ROD 300/500 is the latest laser scanner series, which uses LiDAR

technology for contour measurement and navigation.

The laser scanners of the ROD 300 series for contour measurement and the ROD 500

series for navigation tasks stand out for their high scanning rates with simultaneously high

angular resolution. The integrated window monitoring supports predictive maintenance

and ensures high system availability. Thanks to their compact design, they can also be

integrated into confined production environments.

Advantages for you

Thanks to high angular resolution, manufacturing processes can be carried out with

maximum precision and attention to detail. The precise detection and contour

measurement of different parts in production ensures maximum efficiency, including

resource use.

The high scanning frequency of 80 Hz reliably detects fast-moving objects on

continuous conveyors, maximizing system efficiency.

Predictive maintenance through window monitoring: Integrated window monitoring

allows soiling to be detected quickly, and high system availability can be achieved

through predictive maintenance.

Excellent integration due to compact design: At 80 x 80 x 80 mm, the laser

scanner’s compact size allows it to fit into the smallest installation spaces in

production.

For use in high and low-temperature ranges: Whether for deep-freeze storage or

applications with increased temperature requirements, such as in the battery

manufacturing environment, the ROD 300/500 can be used from -30°C to 60°C.

Robust design: The new ROD 300/500 laser scanner has a strong design thanks to

its IP67 protection class, high-quality aluminum base, and built-in 905 nm laser

diode.
