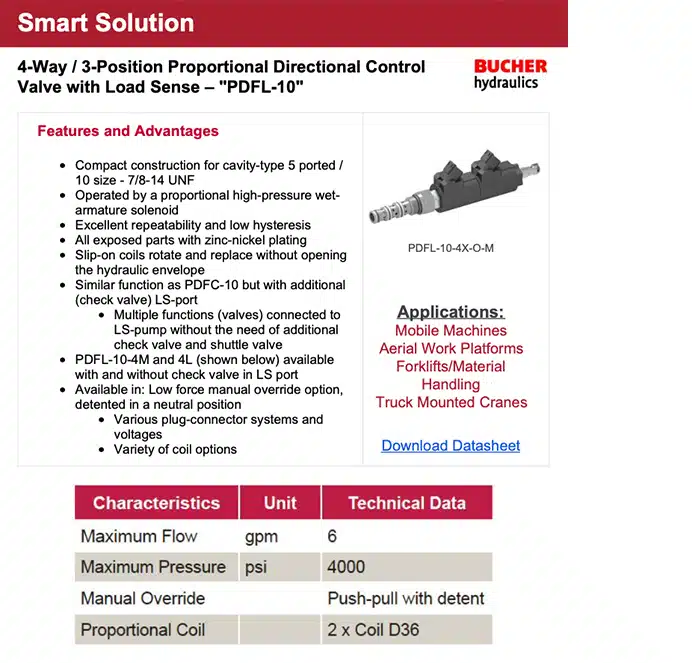

-Way / 3-Position Proportional Directional Control Valve with Load Sense

Features and Advantages

  • Compact construction for cavity-type 5 ported / 10 size – 7/8-14 UNF
  • Operated by a proportional high-pressure wetarmature solenoid
  • Excellent repeatability and low hysteresis
  • All exposed parts with zinc-nickel plating
  • Slip-on coils rotate and replace without opening the hydraulic envelope
  • Similar function as PDFC-10 but with additional (check valve) LS-port
  • Multiple functions (valves) connected to LS-pump without the need of additional check valve and shuttle valve
  • PDFL-10-4M and 4L (shown below) available with and without check valve in LS port
  • Available in: Low force manual override option, detented in a neutral position
  • Various plug-connector systems and voltages
  • Variety of coil options
