Tolomatic ERD Electric Cylinder: A Cost-Effective Alternative to Pneumatic Cylinders

The Tolomatic ERD is an economical rod-style electric cylinder designed to provide flexible, powerful, and cost-effective motion control. Available through Flow Products, the ERD is compatible with many NEMA and metric mount stepper and servo motors, making it a strong option for replacing or upgrading traditional pneumatic cylinder applications.

For manufacturers looking to improve control, reduce compressed-air dependency, and increase repeatability, the ERD electric cylinder offers a practical solution.

Why Choose an Electric Cylinder?

Traditional pneumatic cylinders are widely used, but they may not always offer the level of control, repeatability, or energy efficiency needed in modern automation. Electric cylinders like the Tolomatic ERD can provide controlled motion, flexible positioning, and compatibility with servo or stepper motor systems.

This makes the ERD a good choice for applications where precise control and simplified automation are important.

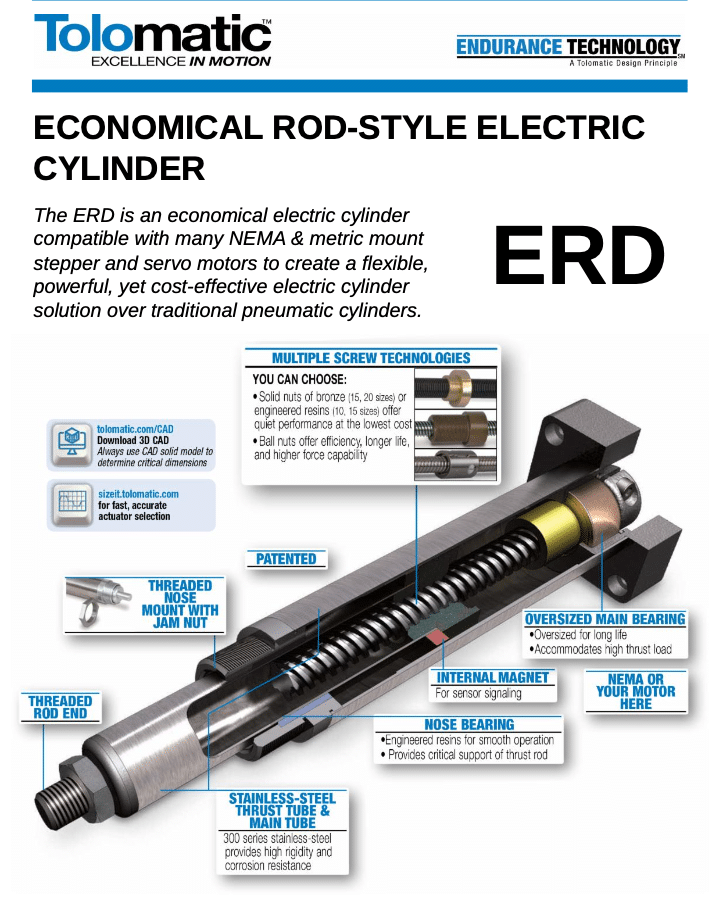

Key Features of the Tolomatic ERD

• Economical rod-style electric cylinder design
• Compatible with many NEMA and metric mount stepper and servo motors
• Flexible electric cylinder solution over traditional pneumatic cylinders
• Multiple screw technologies available
• Stainless steel thrust tube and main tube construction options
• Internal magnet option for sensor signaling
• Oversized main bearing for high thrust loads

Common ERD Applications

The Tolomatic ERD can be used in aligning, animation, assembly, automotive applications, conveyors, diverting, fillers, gating, material handling systems, medical equipment, open/close doors, packaging equipment, pick and place, plate positioning, press fit, robot manipulator arms, sonic welding, sorting, volumetric pumps, web guidance, wire winding, and more.

Flow Products Can Help Size Your Electric Cylinder

The right electric cylinder depends on force, speed, stroke, mounting, duty cycle, and motor/control requirements. Flow Products can help you evaluate your application and select the right Tolomatic ERD configuration.

Contact Flow Products at 773-528-2000 or email [email protected] for assistance sizing an electric cylinder solution.

Frequently Asked Questions

What is the Tolomatic ERD?

The ERD is an economical rod-style electric cylinder designed as a flexible alternative to traditional pneumatic cylinders.

What motors are compatible with the ERD?

The ERD is compatible with many NEMA and metric mount stepper and servo motors.

What applications can use the ERD electric cylinder?

Applications include conveyors, assembly, packaging equipment, pick and place, medical equipment, press fit, sorting, and more.

Can Flow Products help size an ERD actuator?

Yes. Flow Products can help review your application and assist with sizing an electric cylinder solution.
